Sample Project

Using the sample project

If you need help getting started building your application, this section has information about a sample project to help you begin.

Download sample project

The sample project can be found at: extensions-framework-samples.git

Highlevel overview of code

The code contains an ASP.Net Core 8.0 Web API that hosts a Vue.JS Single-Page Application (SPA) within itself. In the frontend, there is a menu where the user can choose between API requests or Window requests. The API requests go to the backend (Web API) within the application itself (Sample application). When the backend receives the requests, it will send another request to Visma Net using the Interactive API.

The implemented requests towards the ERP are the following:

• GET to /v1/supplier/supplierClass
• POST to /v1/supplierInvoice

The Window requests are sent to Visma Net ERP when running an UI Automation inside the ERP. When there is a response sent from the window communication, the application takes care of it as well.

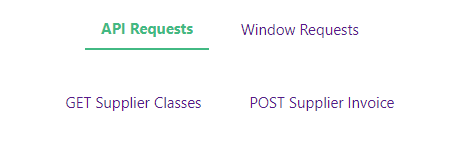

When the application is running, the user is represented with a menu that contains a choice for doing either API or Window Requests. When choosing API Requests, they are presented with the following screen:

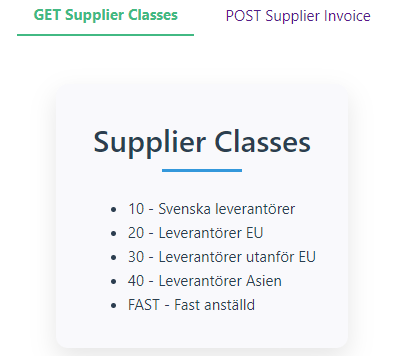

Here they get to choose which type of request they would like to send, the Get Supplier Classes-choice will display supplier classes from Visma Net as expected:

The POST Supplier Invoice-choice presents you with a form for creating a Supplier Invoice:

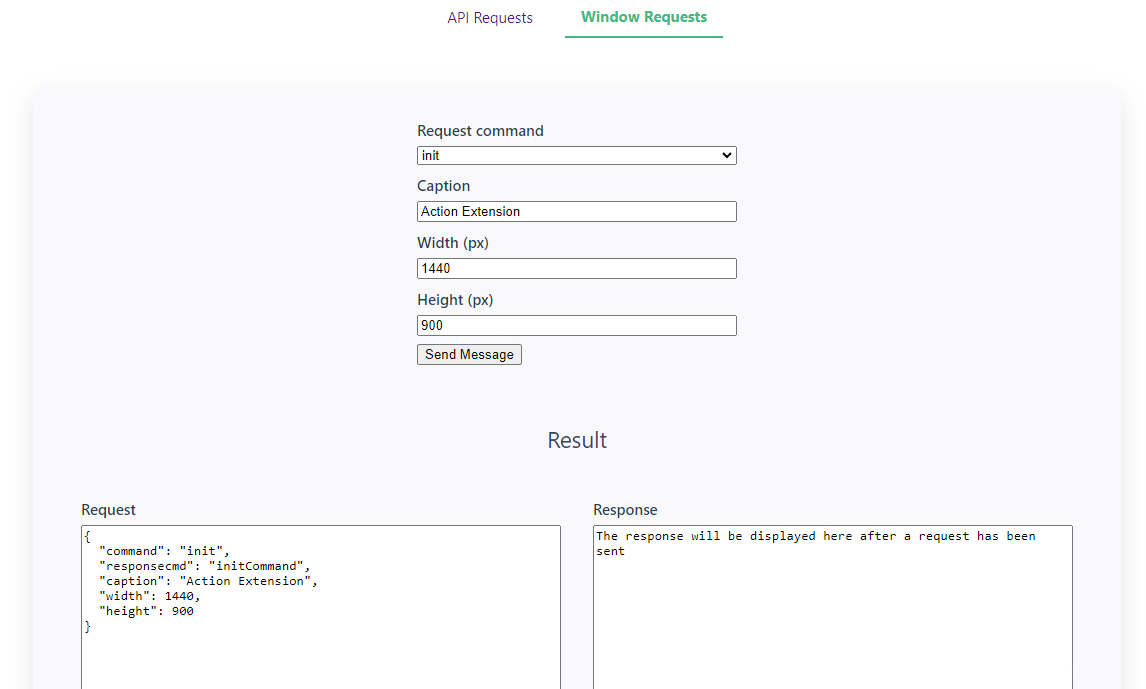

When choosing the Window Requests-option, the user is instead presented with this screen:

This contains a choice of request commands that is talked about more in the section Messages from/to Visma Net

It will also show how the Request is “built up” when changing the values in the top, and the response shows up in the Response-area after a message has been sent.
